Project Description

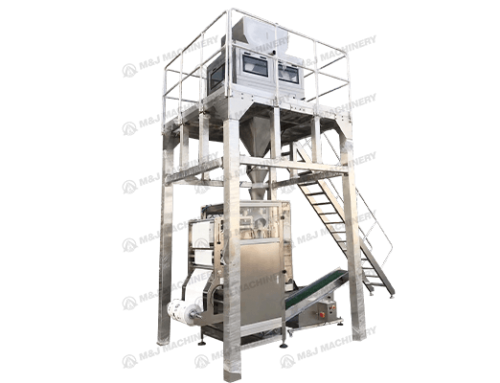

Bags made from Tubular Film – The machine continuously unwinds tube film.
Features:
Precise filling and fast-paced packaging
Automatic bag length adjustment
Intuitive touch screen HMI with graphic 3D images for
simple operation and easy troubleshooting
Open design with easy access for cleaning and
maintenance
Tool-free adjustment and part replacement
Integrated control cabinet for easy installation and
minimal floor space usage
Low power and air construction
Technical Parameters
| Packable Products | granules/ powders/flake particles |
| Bag Type | M-type PE packaging roll film, melt index>0.2, film thickness 140-180um±4% |
| Roll Film | Diameter of roll film≤1500mm, inner tube of roll film: 150mm (6 inches) |
| Sealing Method | Heat sealing |
| Empty Bag Size | L(650-900mm), W(350-390mm) M Side Depth: (50-70mm)±3mm |
| Packaging Weight | 20-50 kg/bag |
| Packaging Speed | 600-1000 bags/h |
| Power | 11 kW |
| Air Consumption | 200 NL/min |
| Equipment Size (L*W*H) | 5130 * 1800 * 2260 |
